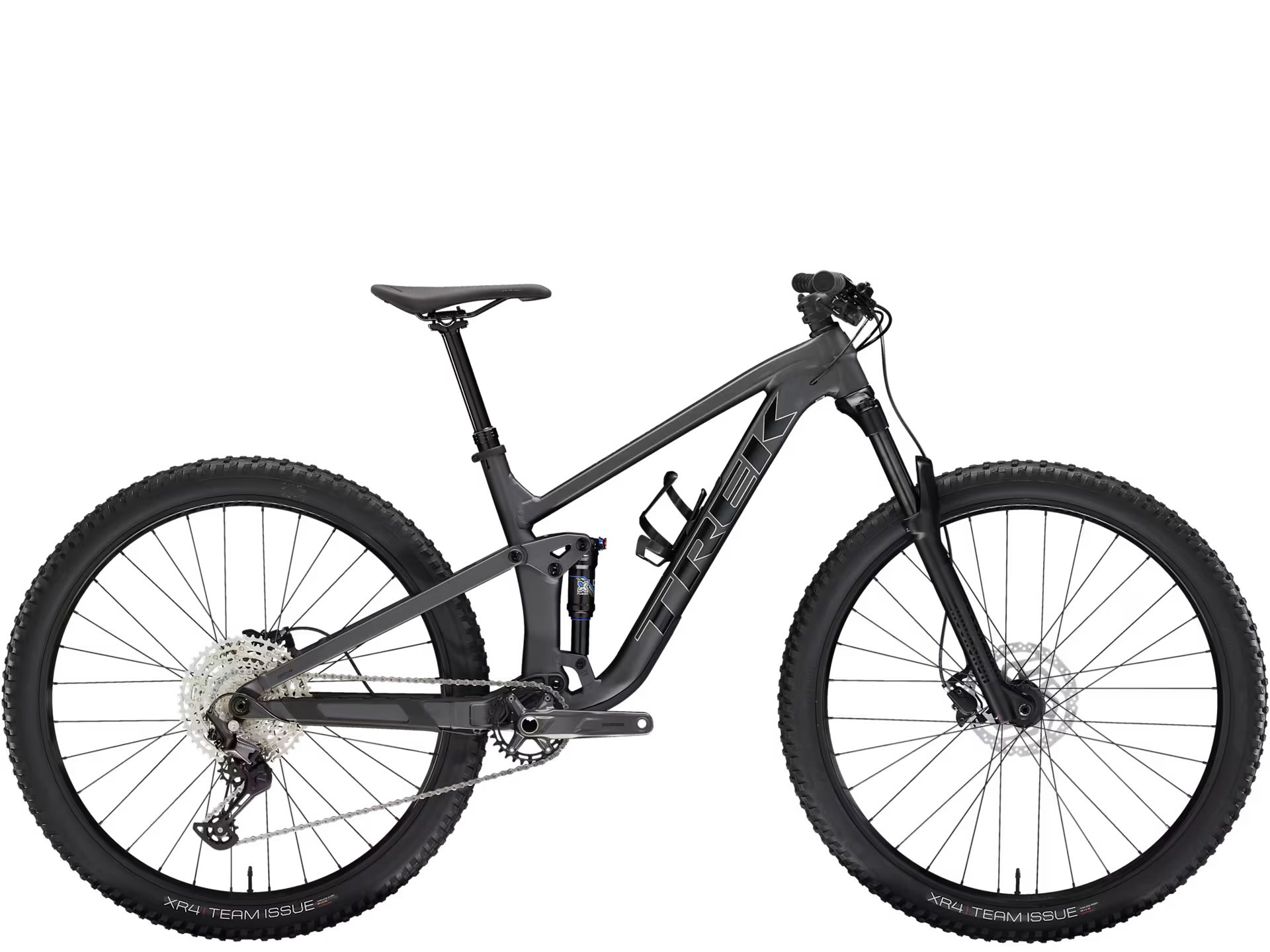

Top Fuel 5 is a full suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for perfor
| Frame | Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel |
| Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Tire | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40'' |
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 36T round, 34T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length |
| Size: M, ML TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length |
|
| Size: L, XL, XXL TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length |
|
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length |
| Headset | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano RT26, 6-bolt, 180mm |
| Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
| Weight | M - 15.60 kg / 34.4 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
