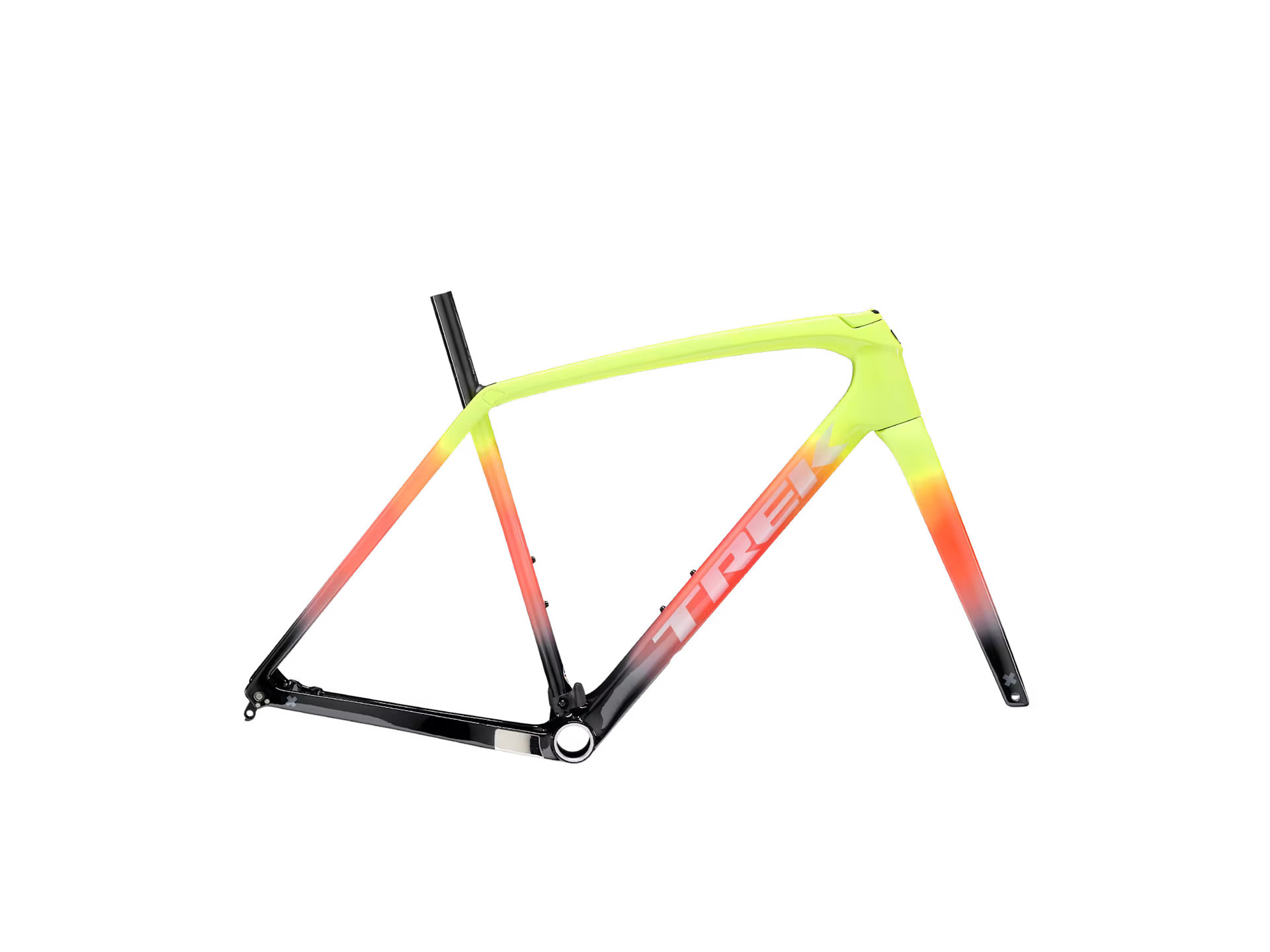

Frame with Fork

600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 BB, flat mount disc, 142x12mm thru axle

Fork

Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle

Weight

Weight

56 - 1.50 kg / 3.31 lbs (excluding hardware)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Drivetrain

Max chainring size

See service manual

Wheels

Skewer front

Bontrager Switch thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

Max tire size

38mm

Components

Rotor size

Max brake rotor sizes: 160mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
